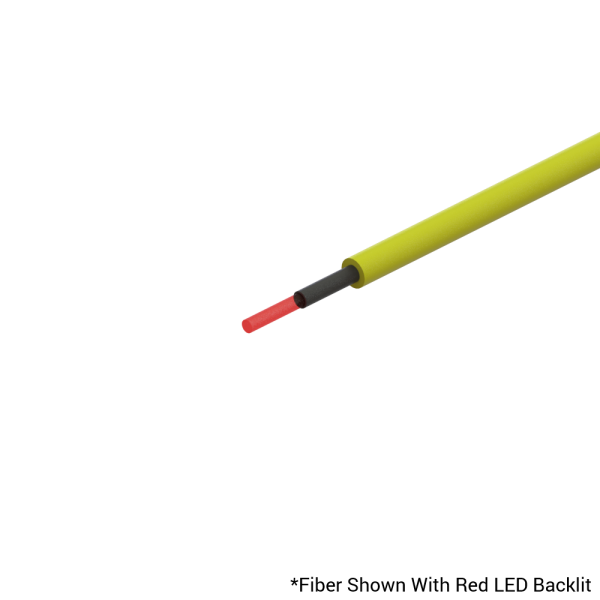

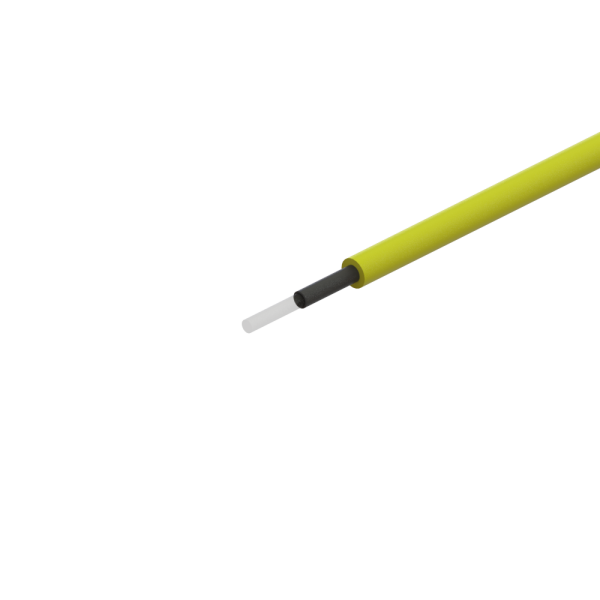

Mitsubishi ESKA™ Premier 1.0 x 2.3mm GHAN Simplex Cable, PE Jacket and PA buffer.
GHAN4001-YEL is a general-purpose cable, typically used for industrial data and sensor applications.
- Configuration: Simplex

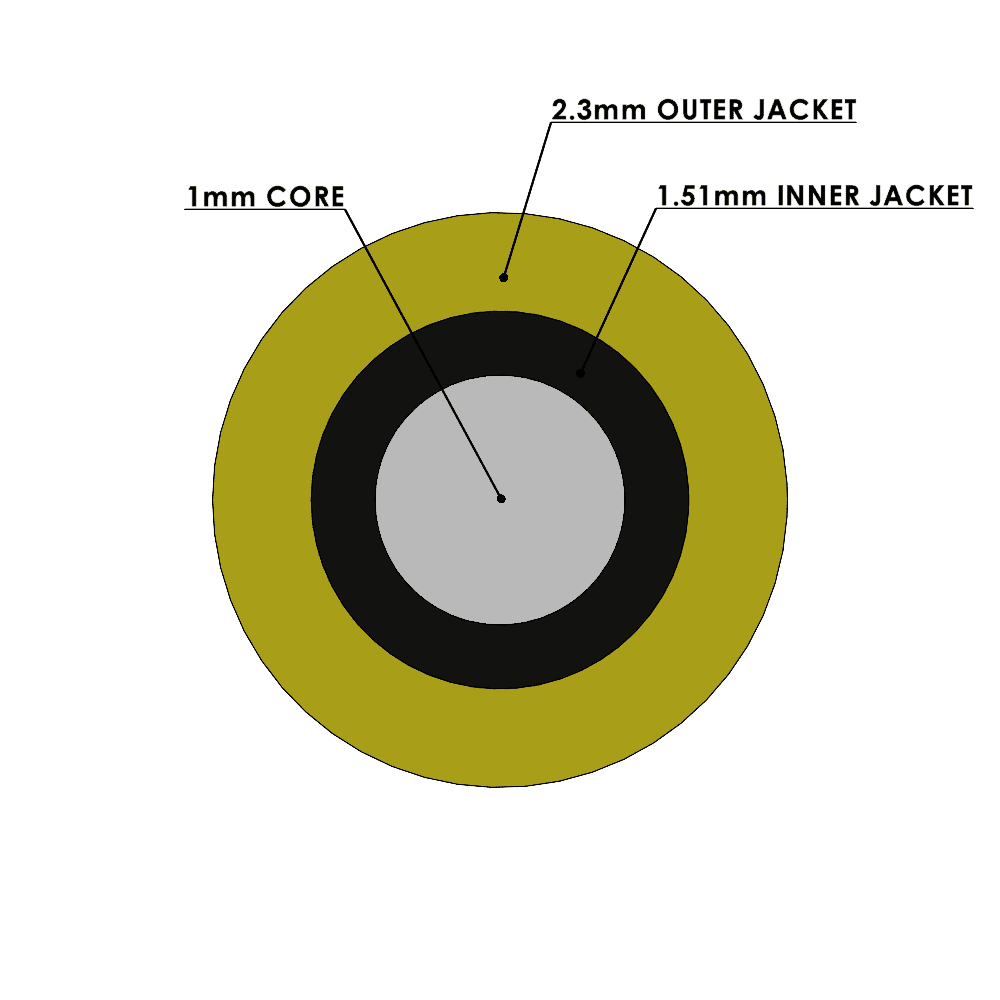

- Core Diameter: 1.0mm
- Core Material: PMMA (Polymethyl Methacrylate)
- Inner Jacket Diameter: 1.51mm
- Inner Jacket Material: PA 12 (Polyamide) - Black
- Outer Jacket Diameter: 2.3mm
- Outer Jacket Material: PE (Polyethylene) - Yellow
- Numerical Aperture: 0.5
- Attenuation: 0.19 dB/m at 650 nm
- Operating Temperature Range: -40°C to 85°C
- RoHS Compliant
- REACH Compliant
- Control Links for CAT Scanners and MRI Machines
- Medical Devices
- EMI-Heavy Environments
- Sensors for Temperature, Bending, Liquid Level
- Factory Automation and Robotics
- Card-to-Card or Machine-to-Controller Data Links
- Direct Replacement for Copper
- Automotive networks
Mitsubishi Chemical Co.
OEM Part Number: GHAN4001-YEL
More information is available directly from the OEM website.
