OLK-61 POF Test Meter Kit-0
OLK-61 POF Test Meter Kit-2363
OLK-61 POF Test Meter Kit-2364
OLK-61 POF Test Meter Kit-2366
OLK-61 POF Test Meter Kit-2367

OLK-61 POF Test Meter Kit

Part #: FF-OLK-61P

$1,189.00 per each

The OLK series test kit is a complete solution for an installer to test and document POF systems.

Available on backorder

Quantity Price
1 - 2 $1,189.00
3 - 4 $1,129.00
5+ $1,070.00
Categories: Test Equipment, Test Meters
  • Description
  • Video
  • Documents

Description

The OLK-61P fiber optic test kits offer a complete solution for the installer to test and troubleshoot a fiber optic system. These test kits are designed to enable testing of all parameters of POF fiber optic networks, including output power levels from the fiber, coupled source power and attenuation loss in a cable. This kit is for multi-mode and POF applications.

Kit Contents
• OLK-61 Test Meter
• OS417 Light Source
• AFS Meter software for Microsoft Windows
• USB cable
• Carrying case
• 2x AD100 connector adapters
• Instruction manual

Meter Features
• Built-in memory to store readings
• Serial port connection for transferring test data to PC
• Supports POF and multimode GOF
• Supports 650nm, 665nm, 790nm, and 850nm
• Absolute (dBm) and relative (dB) reading
• Zero reference function
• LCD backlight
• Auto power-off function
• TIA testing procedure guide
• NIST traceable calibration
• Protective rubber boot

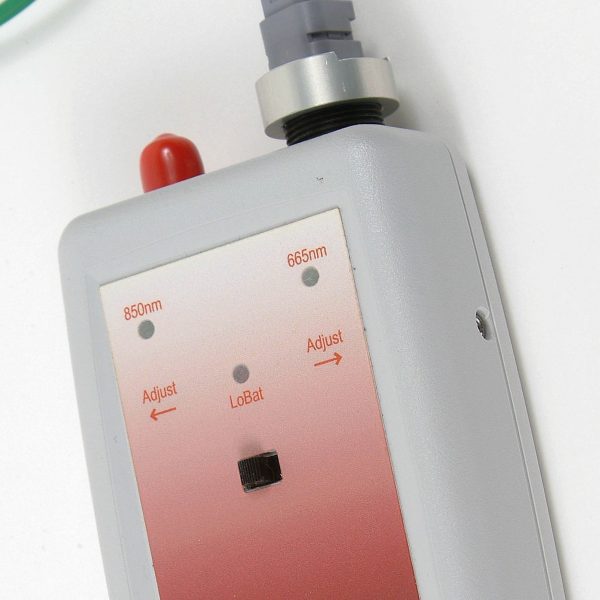

Light Source Features
• Simple operation using 3-position switch: 850nm, Off, 660nm
• 660nm and 850nm LEDs
• Low battery indicator
• Power adjustment dials for LEDs
• Protective rubber boot

Ordering Note
If this product is not shown in stock, lead time is 7 to 11 days due to certification and calibration process.

Power supplies are not included. The US version or European version must be ordered separately.

Learn more about measuring transmission power in POF cables.

POF Test meter Procedures
OLK-61 – Datasheet
OLK-61P Test Meter Kit – Datasheet
